Magnesium Aluminum Spinel

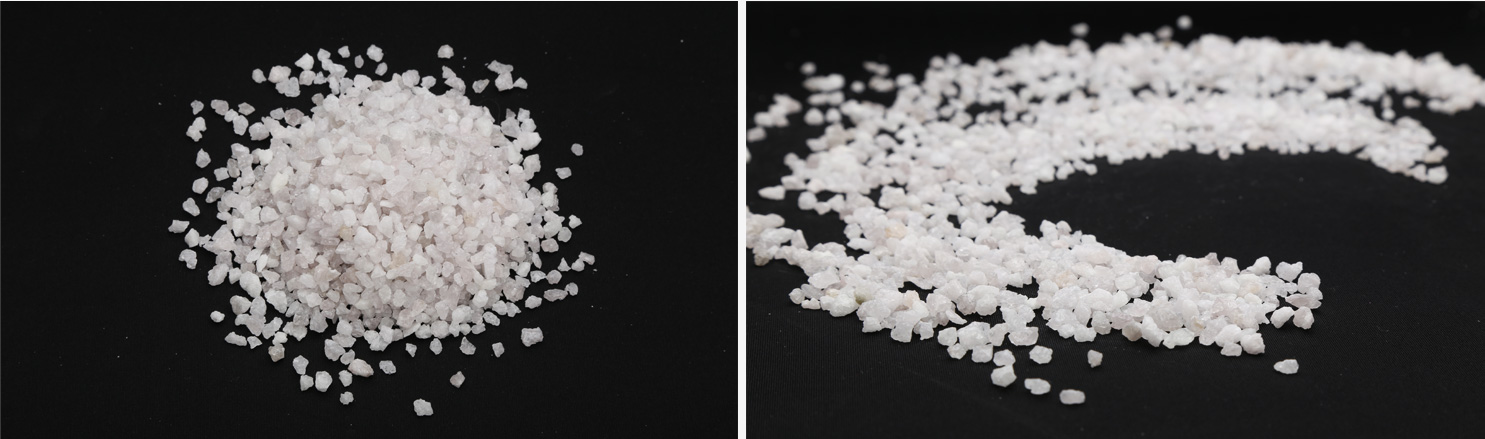

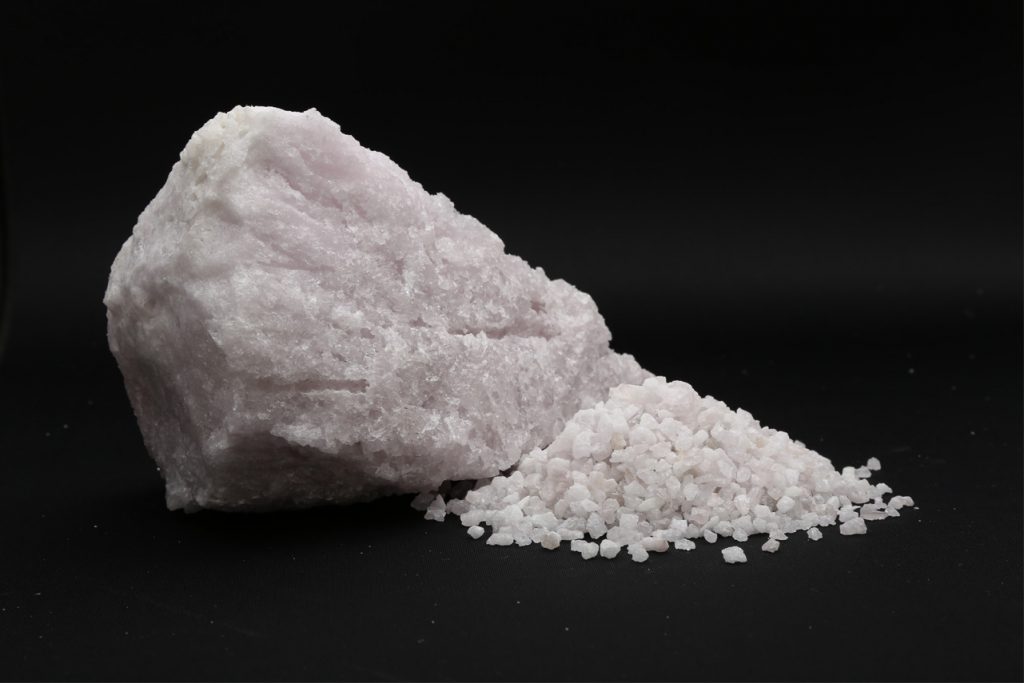

Fused Al2O3-MgO Spinel is made from industrial alumina and high-purity CCM, melting in electric arc furnace.
- Excellent corrosion resistance
- Excellent thermal shock resistance
- Good hot strength
Typical chemical contents
| PROPERTIES | AM-66 | AM-70 | AM-85 | |
| Al2O3 | 63-68% | 71-76% | 82-87% | |
| MgO | 30-35% | 22-27% | 12-17% | |
| SiO2 | 0.60%max | 0.40%max | 0.40%max | |
| CaO | 0.80%max | 0.60%max | 0.50%max | |
| Fe2O3 | 0.40%max | 0.40%max | 0.40%max | |
| Bulk density | 3.3 g/cm3min | 3.2 g/cm3min | 3.2 g/cm3min | |
| Sizes | 0-40/20-10/8-5/5-3/3-1/1-0mm | |||
| 3×6/6×8/8×14/14×28/28×48/-48mesh | ||||
| Fines | -100/-200/-325mesh | |||
| Test standard | GB/T21114-2007, GB/T2999-2002 | |||
| Packing | 1000kg big bag/25kg bag/or as customer request. | |||
