Ladle and Tundish Nozzle

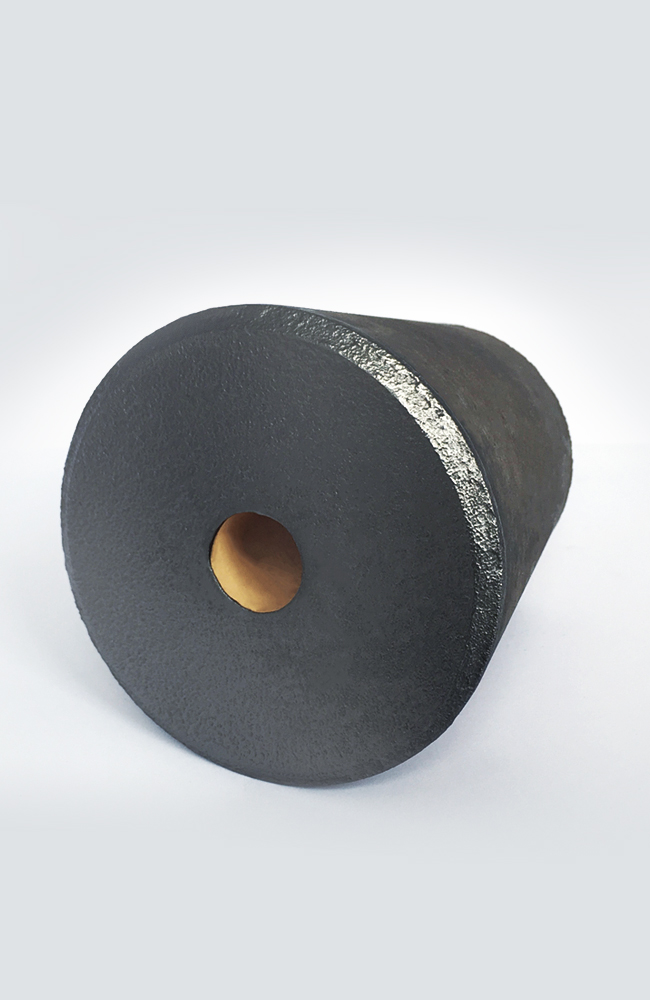

01- Zirconium Tundish Nozzle
Information
The zirconium sizing nozzle is made of stabilized zirconia and imported natural oblique zircon after being stabilized by a special process, and then formed by high-pressure molding and high-temperature firing. The nozzle model can be set according to the different steelmaking environment and use requirements of users.
Feature
This product has the characteristics of high refractoriness, good thermal shock performance, corrosion resistance, erosion resistance, small diameter expansion and long service life.
Application

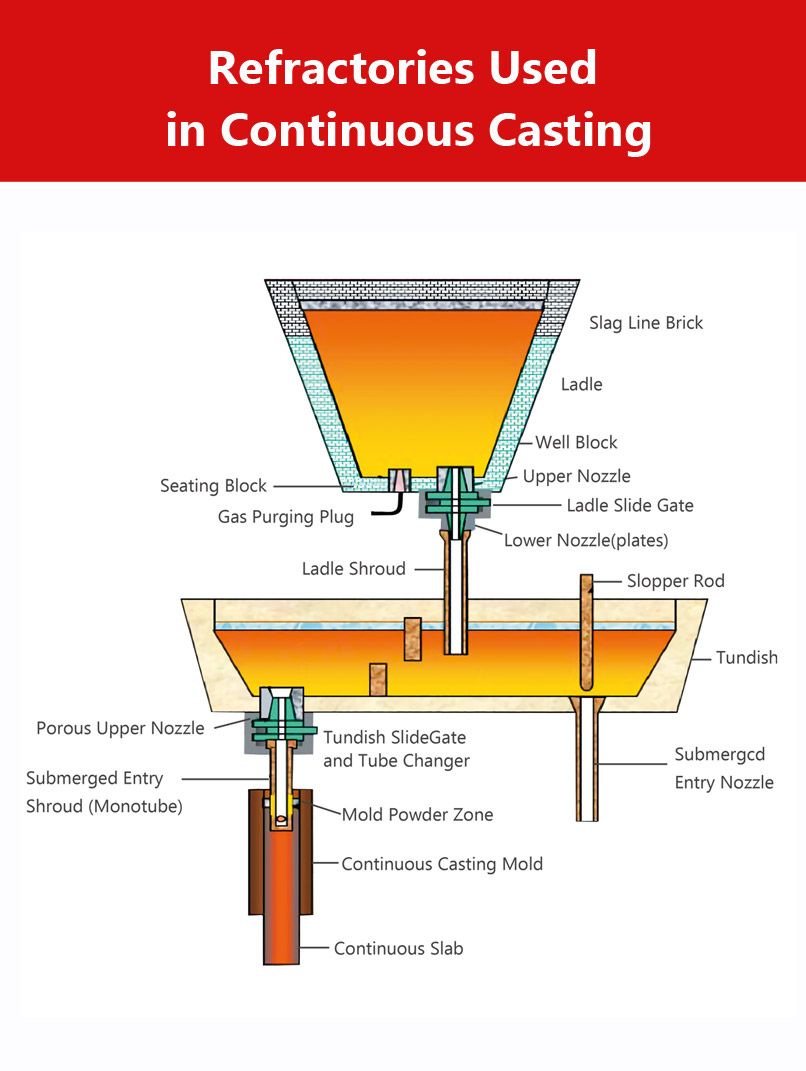

This product is mainly used for continuous casting of tundish billets, blooms, rectangular billets, and small slabs for pouring steel.
Different types of nozzle bricks
Physical and Chemical Indicators of Nozzle Inner Core
Item | SX-1 | SX-2 | SX-3 | SX-4 | SX-5 | SX-6 | SX-7 | SX-8 |
ZrO2+(Hf)O2% | ≧70 | ≧75 | ≧80 | ≧85 | ≧90 | ≧93 | ≧93 | ≧93 |
Bulk Density g/cm3 | ≧3.8 | ≧4.0 | ≧4.2 | ≧4.4 | ≧4.6 | ≧4.9 | ≧5.1 | ≧5.2 |
Apparent Porosity % | ≦22 | ≦22 | ≦20 | ≦20 | ≦20 | ≦15 | ≦13 | ≦10 |
Mpa Compressive Strength | ≧80 | ≧80 | ≧80 | ≧80 | ≧80 | ≧90 | ≧90 | ≧100 |
Thermal Shock Resistance (1100℃ cold water) | >5 | >5 | >5 | >5 | >5 | >5 | >5 | >5 |
Physical and Chemical Indicators of External Body
| Item | W-A1 | W-A2 | W-AC3 | W-AC4 |
| Al2O3 (%) | ≧70 | ≧75 | ≧80 | ≧85 |
| C (%) | ≧3.8 | ≧4.0 | ≧4.2 | ≧4.4 |
| Bulk Density g/cm3 | ≦22 | ≦22 | ≦20 | ≦20 |
| Apparent Porosity % | ≧80 | ≧80 | ≧80 | ≧80 |
| Mpa Compressive Strength | >5 | >5 | >5 | >5 |
Ladle and Tundish Nozzle

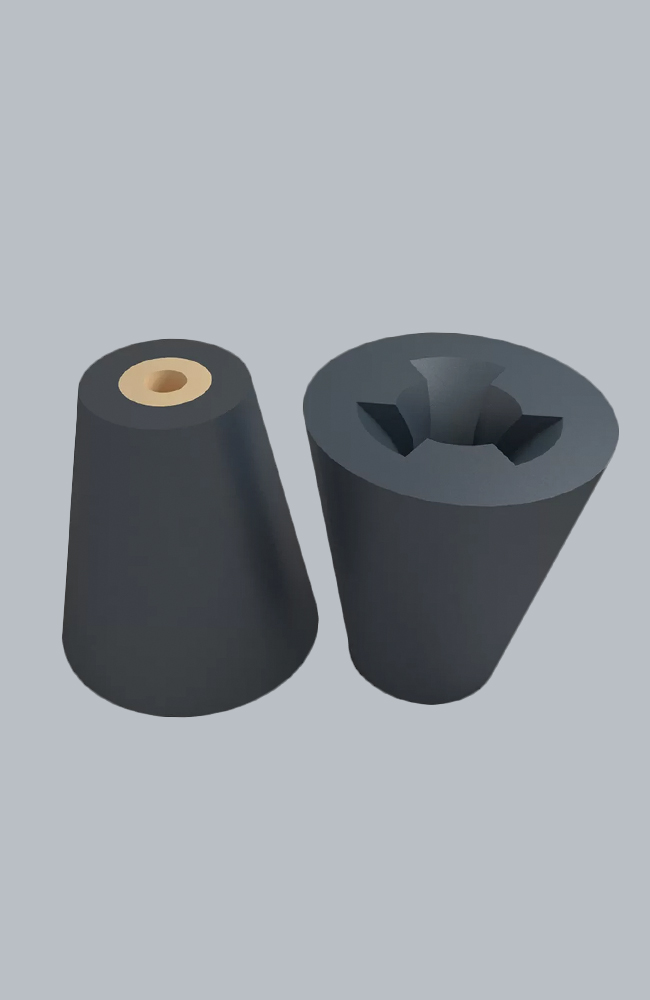

02- Different types of nozzle bricks
Description
The upper and lower nozzles are composed of three parts, the outer layer is aluminum carbon, the inner core is zirconium, and the seat brick is aluminum magnesium carbon. It is formed by high pressure molding with precise process formula and assembled by high temperature firing.
Feature
The product has the characteristics of good thermal vibration stability, erosion resistance, corrosion resistance and high safety factor.
Application

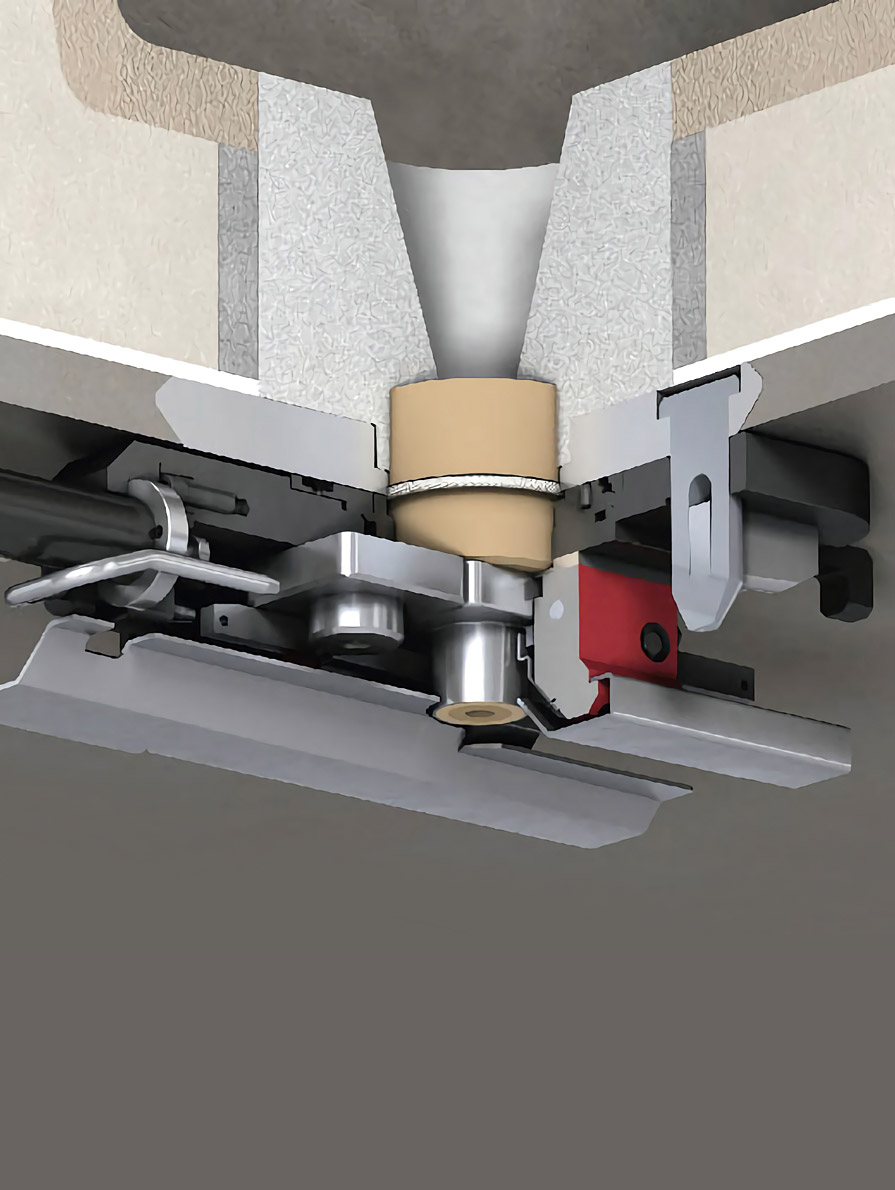

The modified product is mainly used for continuous casting tundish and quick-change mechanism for pouring steel.
Physical and Chemical Indicators
| Item | Upper Nozzle | Bottom Nozzle | Base Brick | ||
Inner Tube | External Body | Inner Tube | External Body | ||
ZrO2+HfO2 (%) | ≧93 | — | ≧93 | — | — |
Al2O3 (%) | — | ≧70 | — | ≧70 | ≧65 |
MgO (%) | — | — | — | ≧10 | |
C (%) | — | ≧3 | — | ≧3 | ≧12 |
Bulk Density ( g/cm3) | ≧5.2 | ≧2.6 | — | ≧2.6 | ≧2.6 |
Apparent Strength (%) | ≦10 | ≦20 | ≦13 | ≦20 | ≦21 |
Crushing Strength (Mpa) | ≧100 | ≧45 | ≧100 | ≧45 | ≧45 |
Thermal Shock Resistance 1100℃ Cold Water | ≧5 | ≧5 | ≧5 | ≧5 | — |
