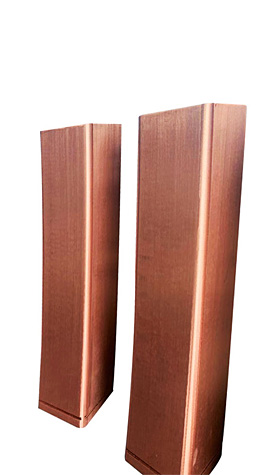

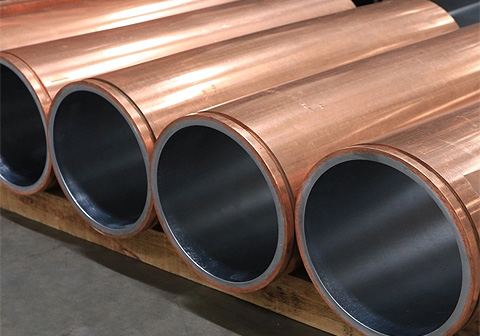

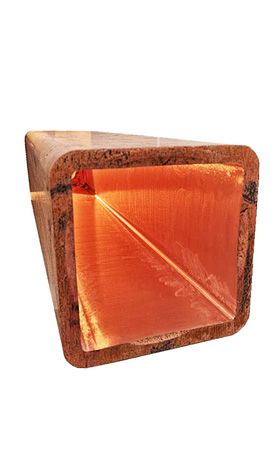

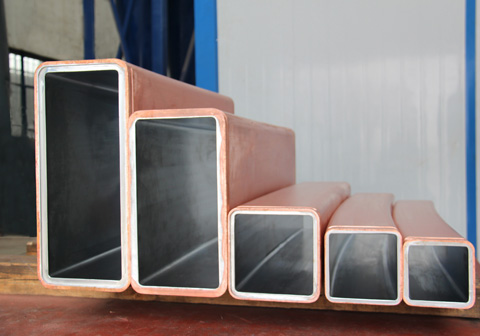

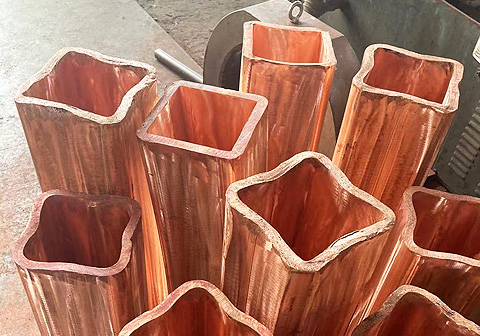

Copper Mould Tube
Copper Mould Tubes are the most essential part of a Continuous Casting Machine. These help in solidifying Liquid Metal in Continuous Casting Machine for producing Steel Billets.
Material
- Metal Mould -TP2
- Metal Mould -CuAg
- Metal Mould -CuCrZr
Copper Moulds are situated in the heart of continuous casting machine
Mould requires extreme high thermal-conductivity and high strength. The molten steel will be formed into a certain shaped steel billets immediately after it passes through the copper tube.
JI-Steel
Mould Material
At present, Deoxidized phosphorus copper (TP2), Silver-bearing copper (CuAg0.1) and Cu-Cr-Zr are normally selected as the material to produce copper mould tubes.
Metal Mould -TP2
This kind of material is selected by most of the steel plants. It shows excellent heat-proof and anti-fatigue property under high temperature and it has good processing property.
Metal Mould -CuAg
Adding 0.08%-0.12% silver during copper smelting, increase the re-crystallization temperature of copper by 100 C, which will increase the heat stress and anti-abrasive property of copper mould tube interior surface, showing better heat- resistant property than Tp2.
Metal Mould -CuCrZr
Cu-Cr-Zr is a kind of copper alloys which can be normalized by time. It has excellent mechanical property under both room temperature and high temperature. It has high heat conductivity, melting point, anti-fatigue and anti heat stress properties.
Copper Mould Tube Material
| Item | Temp. | Unit | Material | ||
| CuDHP | CuAg0.1 | CuCrZr | |||
| Chemical Composition | |||||
| P0.015-0.040 | Ag0.08-0.12 | Cr0.30-1.20 | |||
| — | P0.04-0.012 | Zr0.03-0.30 | |||
| Physical Properties | |||||
| Electrical conductivity | 20 | %IACS | 83 | 95 | 80 |
| Thermal conductivity | 20 | W/(m.k) | 340 | 372 | 330 |
| Coefficient of thermal expansion | 20-300 | 10’-6/K | 17.1 | 17.1 | 17.2 |
| Recrystallisation temperature | — | ℃ | 345 | 360 | 690 |
| Modulus of elasticity | 20 | 10’3MPa | 120 | 123 | 126 |
| Melting point | — | ℃ | 1083 | 1083 | 1078 |
| Specific gravity | — | g/cm3 | 8.9 | 8.9 | 8.9 |
| Mechanical Properties | |||||
| Ultimate tensile strength | 20 | Mpa | 240-310 | 240-310 | 375-445 |
| Ultimate tensile strength | 100 | Mpa | 190-270 | 230-270 | 365-425 |
| Ultimate tensile strength | 200 | Mpa | 140-190 | 205-240 | 365-410 |
| Ultimate tensile strength | 300 | Mpa | — | 175-210 | 335-375 |
| Ultimate tensile strength | 400 | Mpa | — | 145-160 | 315-350 |
| 0.2 Yield point strength(Rp0.2) | 20 | Mpa | 190-250 | 200-225 | 280-355 |
| 0.2 Yield point strength(Rp0.2) | 100 | Mpa | 185-260 | 195-240 | 270-345 |
| 0.2 Yield point strength(Rp0.2) | 200 | Mpa | — | 180-225 | 260-330 |
| 0.2 Yield point strength(Rp0.2) | 300 | Mpa | — | 165-215 | 250-320 |
| 0.2 Yield point strength(Rp0.2) | 400 | Mpa | — | 130-145 | 240-290 |
| Elongation（A5） | 20 | % | 25_10 | 16_10 | 20-13 |
| Hardness | 20 | HB | 80-95 | 110-125 | 115-130 |
