Product Induction

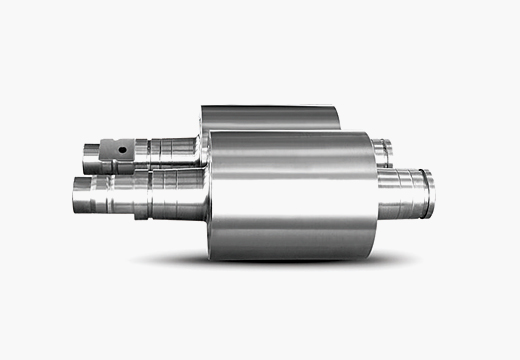

Alloy cast steel roll is made of high-quality molten steel and advanced casting and heat treatment technology. It has high strength, excellent thermal crack resistance, toughness and wear resistance. It is suitable for rough and medium rolling mills for section steel, rolls for rough rolling mills for hot-rolled strip steel and hot-rolled strip steel support rolls. The metallographic structure of the roll body is pearlite or tempered troostite.
Chemical Composition
Grade | C | Si | Mn | Cr | Ni | Mo |
AS60A(60CrNiMnMo) | 0.55-0.65 | 0.2-0.60 | 0.60-2.00 | 1.40-2.20 | ≤0.60 | 0.30-0.60 |
AS70A(70Mn2) | 0.65-0.75 | 0.20-0.45 | 1.40-1.80 | — | — | — |
AS70B(70Mn2Mo) | 0.65-0.75 | 0.2-0.45 | 1.40-1.80 | — | — | 0.20-0.45 |
AS75(75CrMo) | 0.70-0.80 | 0.20-0.45 | 0.60-0.90 | 0.75-1.0 | — | 0.20-0.60 |
AS75A(75CrNiMo) | 0.70-0.80 | 0.20-0.70 | 0.70-1.10 | 0.80-1.50 | 0.20-0.80 | 0.20-0.60 |
AS75B(75Cr3NiMo) | 0.70-0.80 | 0.20-0.60 | 0.70-1.10 | 1.50-3.60 | 0.40-1.00 | 0.20-0.80 |
Performance and Application
Grade | Roller hardness | Tensile strength | Elongation | Application |
AS60A | 45-55 | ＞700 | ＞8 | Small and medium-sized steel, bar and wire roughing mill, hot-rolled strip roughing rolls, vertical rolls |
AS70A | 34-44 | ＞680 | ＞7 | Large steel slab rolls, requiring good wear resistance |
AS70B | 36-46 | ＞680 | ＞7 | |
AS75 | 36-46 | ＞680 | ＞6 | |
AS75A | 35-55 | ＞800 | ＞7 | |
AS75B | 40-60 | ＞800 | ＞7 | Slab, rough rolling, hot-rolled narrow strip steel support rolls |
